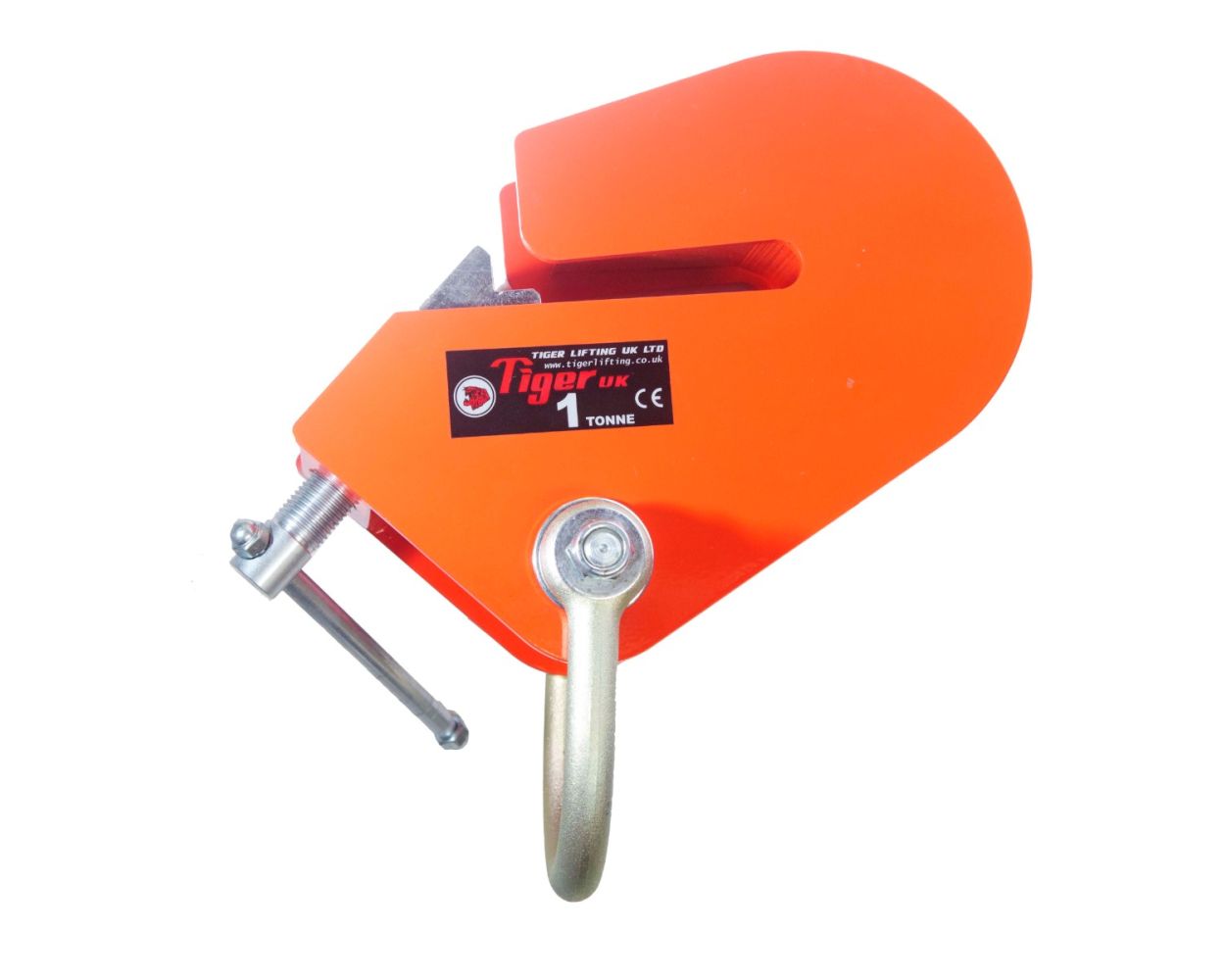

Tiger BCA Angle Beam Clamp

The Tiger BCA Angle Beam Clamp has v shaped clamping jaws that ensure a safe and secure grip onto the beam, this enables the clamps to be used as a quick and versatile rigging point for hoisting equipment when attached to an overhead steel angle section that is approved for lifting applications. The BCA beam clamp is available in a 1000kg model and a 3000kg model and is designed to accommodate a wide range of steel angle sections.

These units meet and exceed all the requirements of BS EN 13155:2003+A2:2009 and has a safety factor of 4:1. The BCA angle clamp has an operating temperature range of -50ËšC up to 50ËšC

There is no need for tools when using the BCA clamps thanks to the integrated adjusting screw spindle.

Up to 3000 kg capacity
